Our trail and enduro-ready perfect blend of price and performance. The eONE-SIXTY 6000 combines our latest 160 mm full carbon e-enduro frame with the compact and lightweight Bosch Performance Line SX drivetrain to create one of the most agile and fun-to-ride e-enduros in our range. With almost 'human-powered' handling and a powerful 55 Nm of assistance to kick in when needed, the eONE-SIXTY 6000 is the ideal machine for trail and enduro riders looking for maximum trail fun while enjoying an active riding style.

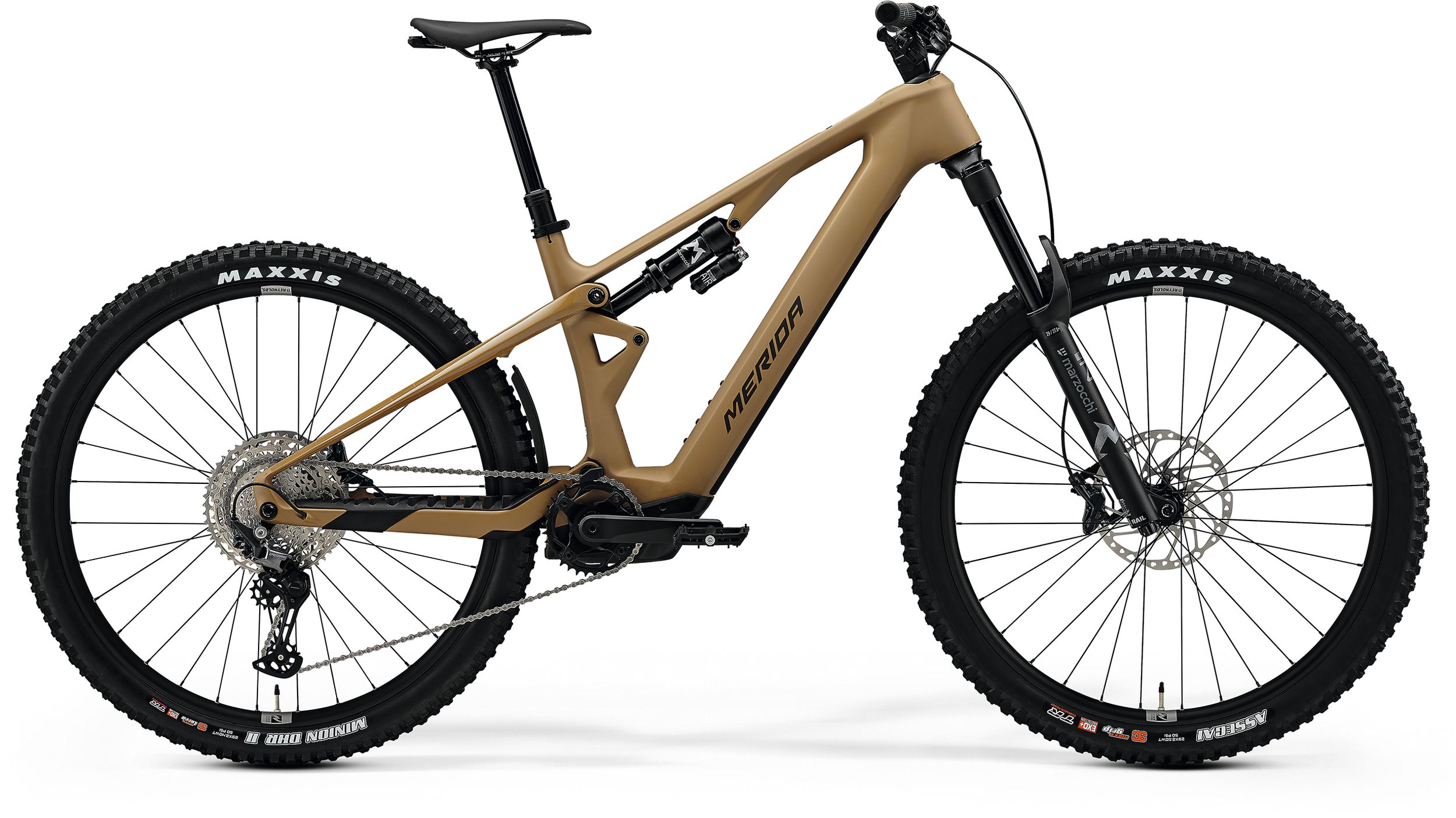

The eONE-SIXTY SL represents a new breed of e-mountain bike, combining the poise of an unassisted bike with the power of a Bosch SX drive unit to help you ride further and faster. With a lightweight full carbon frame, 160 mm of well-balanced travel and a build that blends hard-hitting performance with low weight, it blurs the line between conventional and assisted riding. The eONE-SIXTY SL combines ‘human-powered’ bike handling and enduro tough but lightweight equipment with the latest compact Bosch Performance Line SX motor with 55 Nm, and a fully integrated 400 Wh battery plus an optional 250 Wh range extender for an experience that blurs the line between normal and e-bike, plus a colour Kiox 400C display mounted in the top tube. If you are the type of rider who likes to pedal hard and use the assistance for maximum fun on the trail, then the eONE-SIXTY SL should be your next trail and enduro companion.
- Lightweight full carbon fibre CF4 frame with 160 mm rear wheel travel
- Shimano Deore 12-speed drivetrain and 4-piston Shimano disc brakes
- Marzocchi Z1 eMTB fork with 160 mm travel and Marzocchi Bomber Air rear shock
- Bosch Performance Line SX drive unit, integrated 400 Wh battery, Kiox 400C colour display, optional 250 Wh range extender
- Fast-rolling 29er wheel size as standard, with the option to run a mixed-size setup
- Reach-based AGILOMETER-inspired sizing system with long travel dropper post
Awards & Media
- material: carbon
- 160mm suspension travel
- 29x2,4" max. wheelsize
- 148x12mm axle standard
- fixed battery
- Air
- 160mm suspension travel
- Tapered
- 44mm fork offset
- 29x2.6" max wheelsize
- platform
- 4 piston
- 34.9mm diameter
- 0mm setback *
- V-mount
- incl. MERIDA minitool
- 165mm for all sizes
- 10-51 teeth
- 12 speed
- 15x100mm width front hub
- 32 spoke holes
- Centerlock
- 12x148mm width rear hub
- 32 spoke holes
- Centerlock
- 30mm inner width
- material: aluminium
- Tubeless ready (tubeless tape installed)
- 29"
- 29x2.5 "
- fold
- TR EXO+ 3C MaxxGrip
- 29x2.4 "
- fold
- TR EXO+ 3C MaxxTerra
- including removeable lever, 6/4mm allen key
- black nipples
weighed at frame size M
Frame Size | XShort | Short | Mid | Long | XLong |
Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
ST seat tube [mm] | 400 | 410 | 425 | 445 | 465 |
TT top tube [mm] | 543 | 567 | 591 | 616 | 640 |
CS chain stay length [mm] | 450 | 450 | 450 | 450 | 450 |
HTA head tube angle [°] | 64 | 64 | 64 | 64 | 64 |
STA seat tube angle [°] | 78.5 | 78.5 | 78.5 | 78.5 | 78.5 |
BD bottom bracket drop [mm] | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 |
HT head tube [mm] | 100 | 105 | 110 | 115 | 120 |
FL fork length [mm] | 571 | 571 | 571 | 571 | 571 |
R reach [mm] | 420 | 443 | 466 | 489 | 512 |
S stack [mm] | 611 | 616 | 620 | 625 | 629 |
WB wheel base [mm] | 1202 | 1228 | 1253 | 1278 | 1303 |
SH stand over height [mm] | 753 | 757 | 761 | 768 | 774 |
Str Stack To Reach Ratio Pc | 1.45 | 1.39 | 1.33 | 1.28 | 1.23 |
No. | Item-No. | Name | Info | Pieces | Torque NM |
1 | A2300000729 | BOLT | M6x1 OD15/17mm L69mm | 1 | |
2 | A2221000040 | BEARING | 172607V-2RS OD26mm ID17mm W7mm | 1 | |
3 | A2294000102 | WASHER | OD21mm ID17.1mm H3mm | 1 | |
4 | A2294000016 | WASHER | OD19mm ID15.1mm H3mm | 3 | |
5 | A2221000043 | BEARING | 3802V-2RS OD24mm ID15mm W7mm | 3 | |
6 | A2300000609 | SCREW | M10x1 L15mm | 1 | 15~17 |
7 | A2300000736 | BOLT | M6x1 OD10mm L39mm | 1 | |
8 | A2298000113 | SCREW | M6x1 L16mm | 2 | 8~10 |
9 | A2294000196 | WASHER | for M6 sunkenhead screw OD16mm | 4 | |
10 | A2300000693 | BOLT | M6x1 OD12mm L62mm | 1 | |
11 | A2300000737 | SCREW | M8x1 L49mm | 1 | 18~20 |
12 | A2294000224 | LOCK RING | for ID21 | 1 | |
13 | A2294000223 | WASHER | OD12.1mm ID15.5mm H3mm | 2 | |
14 | A2221000035 | BEARING | 6801V-2RS OD21mm ID12mm W5mm | 2 | |
15 | A2031000097 | LINK | 1 | ||
16 | A2262000059 | WASHER | OD15.5mm ID12.1mm H31mm | 1 | |
17 | A2300000743 | SCREW | M15x1 L20.5mm | 2 | 23~25 |
18 | A2294000225 | LOCK RING | for ID24 | 2 | |
19 | A2302000109 | NUT | M15x1 flipchip | 2 | |
20 | A2292000141 | WASHER | OD13mm ID9mm H1mm | 1 |
