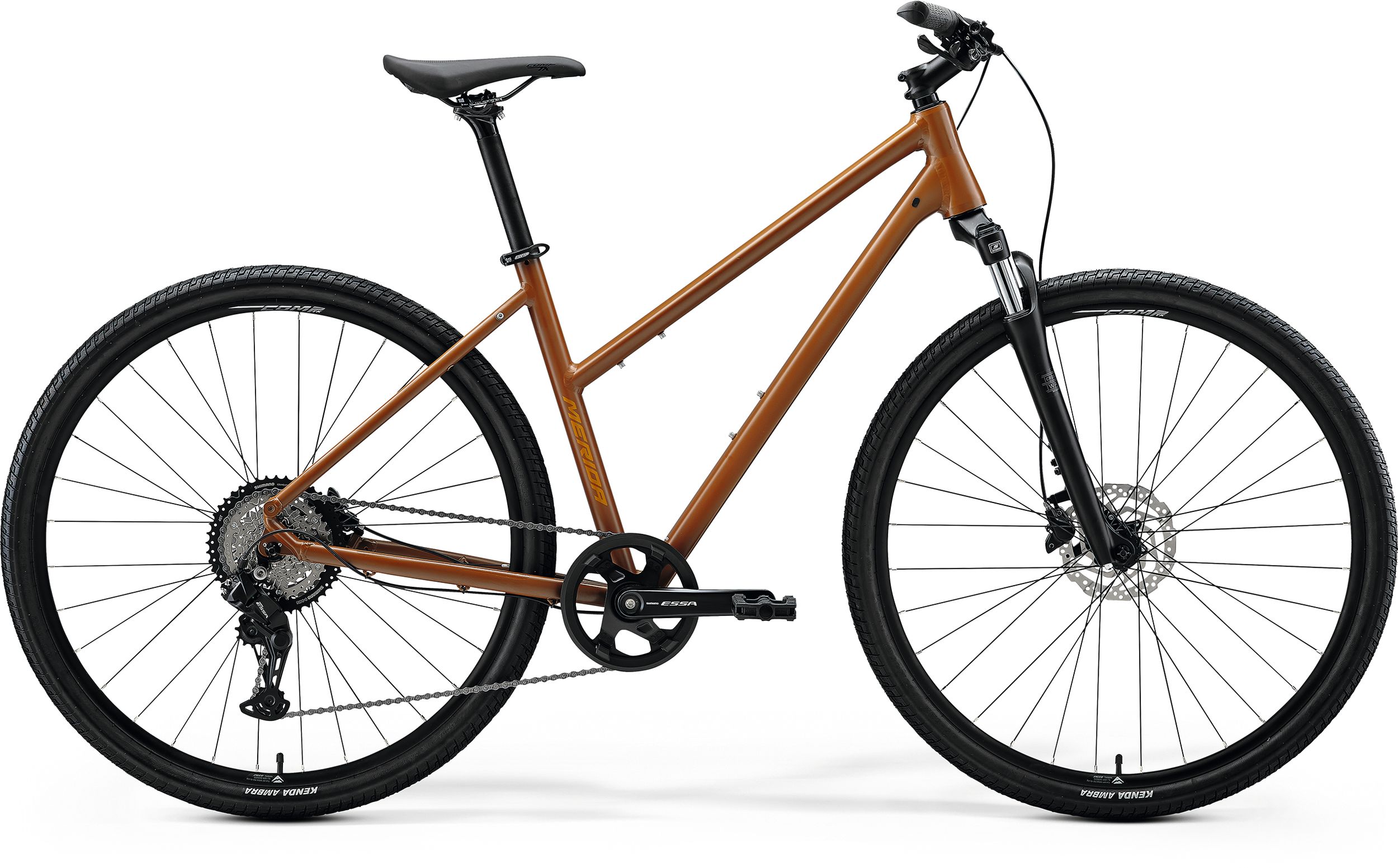

Comfort, control and style. The low-step-through CROSSWAY 20 comes equipped with powerful, low-maintenance disc brakes that offer reliable stopping power, whatever the conditions or weather. In combination with the increased volume 45 mm tyres and a suspension fork, this bike is equally comfortable on forest paths at the weekend as it is on a daily work commute. A quality Shimano drivetrain will give many miles of fuss-free service.
The CROSSWAY family is our versatile and proven way of getting around. Suitable for fitness training, commuting and leisurely rides through forests and on trails, they are designed to provide a comfortable place to take in the surroundings thanks to an upright riding position. Comfort-focused equipment such as suspension fork and adjustable stems on selected models means they offer the perfect blend of comfort, enjoyment and all-round functionality. An updated, high-quality aluminium frame now offers greater clearance for 50mm tyres on 700c wheels so you can cover ground quickly with added puncture protection, grip and comfort. With the ability to mount mudguards, racks and kickstands (available separately as the EQ kit), the CROSSWAY range is the perfect choice for everyday riding. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.
- Lightweight low-step-through aluminium frame with comfort geometry and 50 mm tyre clearance
- Lockable suspension fork with new bars and stem for extra comfort
- Hydraulic disc brakes
- Shimano ESSA 1x8-speed drivetrain
- Multiple fixing points for rear rack and fenders
- Full-equipment EQ kit available separately
- material: aluminium
- 700x50C max. wheelsize
- 135x9mm axle standard
- BSA bottom bracket standard
- Coil
- 63mm suspension travel
- 700x50C max. wheelsize
- hydraulic brake
- 160 mm
- material: aluminium
- 30.9mm diameter
- 0mm setback
- MAT Aluminium
- 170mm
- 11-45 teeth
- 8 speed
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
- 17mm inner width
- material: aluminium
- 700x45C
- wire
- 700x45C
- wire
| Frame Size | XXS | XS | S | M | L |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 390 | 430 | 470 | 510 | 550 |
| TT top tube [mm] | 560 | 565 | 580 | 590 | 610 |
| CS chain stay length [mm] | 460 | 460 | 460 | 460 | 460 |
| HTA head tube angle [°] | 70.5 | 70.5 | 71 | 71 | 71.5 |
| STA seat tube angle [°] | 74 | 74 | 73.5 | 73.5 | 73 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 70 | 70 |
| HT head tube [mm] | 130 | 130 | 140 | 155 | 175 |
| FL fork length [mm] | 468 | 468 | 468 | 468 | 468 |
| FO fork offset [mm] | 42 | 42 | 42 | 42 | 42 |
| R reach [mm] | 382 | 387 | 393 | 399 | 406 |
| S stack [mm] | 620 | 620 | 631 | 645 | 667 |
| WB wheel base [mm] | 1076 | 1081 | 1085 | 1096 | 1104 |
| SH stand over height [mm] | 639 | 639 | 639 | 639 | 639 |
