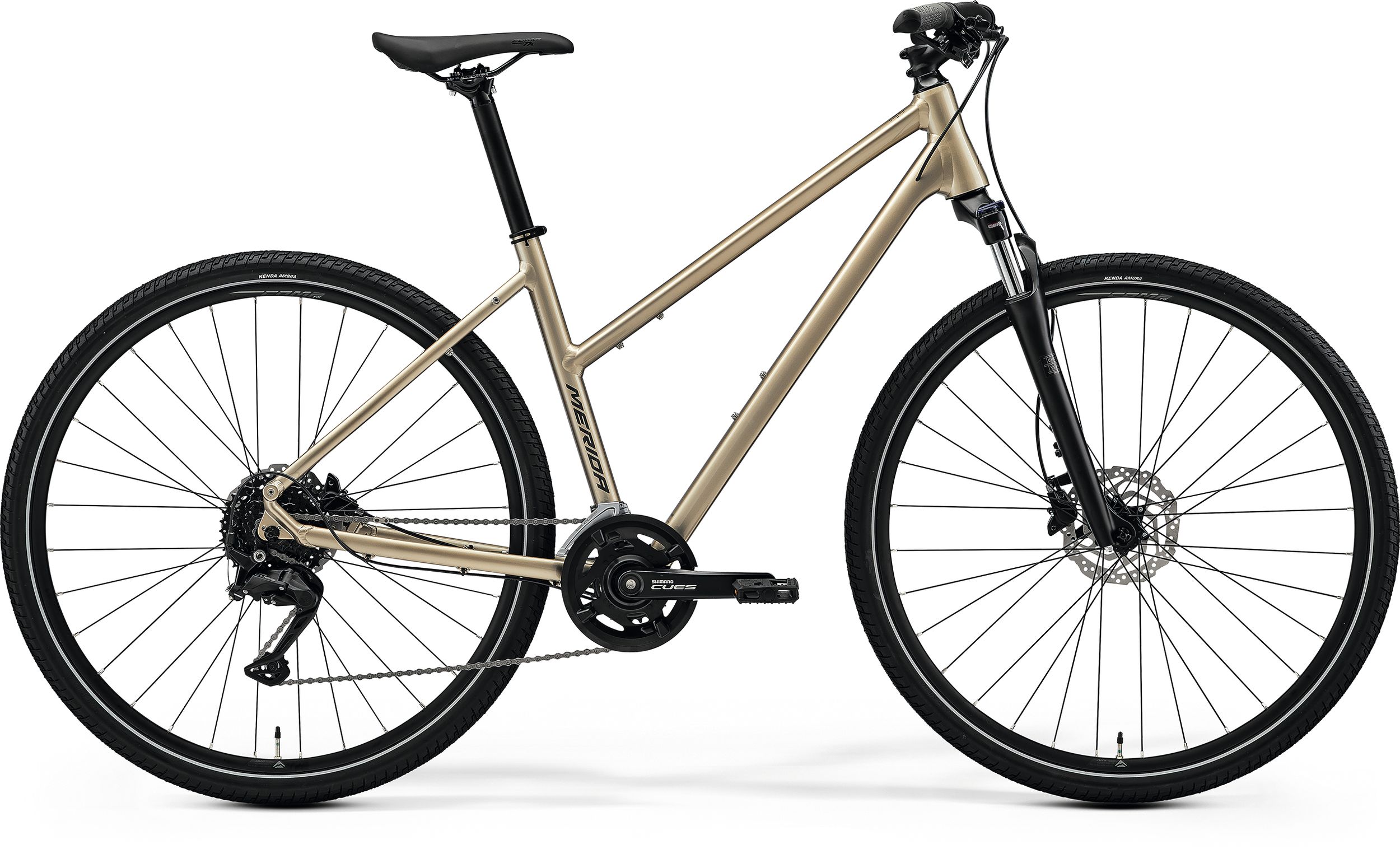

Our updated low-step-through trekking/hybrid bike now has more tyre clearance for an even more comfortable ride, with a long list of quality components, including powerful, easy-to-control hydraulic disc brakes, a broad 18-speed gear range plus a comfort and safety-enhancing suspension fork. All of this is fitted to our latest TFS lightweight aluminium frame with a comfort-orientated geometry, making the CROSSWAY 100 a perfect mix of value, day-to-day usability and leisure time versatility.
The CROSSWAY family is our versatile and proven way of getting around. Suitable for fitness training, commuting and leisurely rides through forests and on trails, they are designed to provide a comfortable place to take in the surroundings thanks to an upright riding position. Comfort-focused equipment such as suspension fork and adjustable stems on selected models means they offer the perfect blend of comfort, enjoyment and all-round functionality. An updated, high-quality aluminium frame now offers greater clearance for 50 mm tyres on 700c wheels so you can cover ground quickly with added puncture protection, grip and comfort. With the ability to mount mudguards, racks and kickstands (available separately as the EQ kit), the CROSSWAY range is the perfect choice for everyday riding. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.
- Lightweight low-step-through aluminium frame with comfort geometry and 50mm tyre clearance
- Lockable suspension fork
- Hydraulic disc brakes
- Shimano 2x9 CUES drivetrain
- Multiple fixing points for rear rack and fenders
- Full-equipment EQ kit available separately
- material: aluminium
- 700x50C max. wheelsize
- 135x9mm axle standard
- BSA bottom bracket standard
- Crossway EQ-kit ready
- L-frame:-XXS,W-XS,W-S,W-M,W-L
- Coil
- 63mm suspension travel
- Lockout
- 700x48C max. wheelsize
- 2 piston
- 160mm
- material: aluminium
- 30.9mm diameter
- 5mm setback
- 40-26 teeth
- 170 mm-XXS/XS/S, 175 mm-M/XL
- 11-36 teeth
- 9 speed
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
- 20mm inner width
- 17mm height
- material: aluminium
- 700x45C
- wire
- reflective stripe
- 700x45C
- wire
- reflective stripe
| Frame Size | XXS | XS | S | M | L |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 390 | 430 | 470 | 510 | 550 |
| TT top tube [mm] | 560 | 565 | 580 | 590 | 610 |
| CS chain stay length [mm] | 460 | 460 | 460 | 460 | 460 |
| HTA head tube angle [°] | 70.5 | 70.5 | 71 | 71 | 71.5 |
| STA seat tube angle [°] | 74 | 74 | 73.5 | 73.5 | 73 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 70 | 70 |
| HT head tube [mm] | 130 | 130 | 140 | 155 | 175 |
| FL fork length [mm] | 468 | 468 | 468 | 468 | 468 |
| FO fork offset [mm] | 42 | 42 | 42 | 42 | 42 |
| R reach [mm] | 382 | 387 | 393 | 399 | 406 |
| S stack [mm] | 620 | 620 | 631 | 645 | 667 |
| WB wheel base [mm] | 1076 | 1081 | 1085 | 1096 | 1104 |
| SH stand over height [mm] | 639 | 639 | 639 | 639 | 639 |
