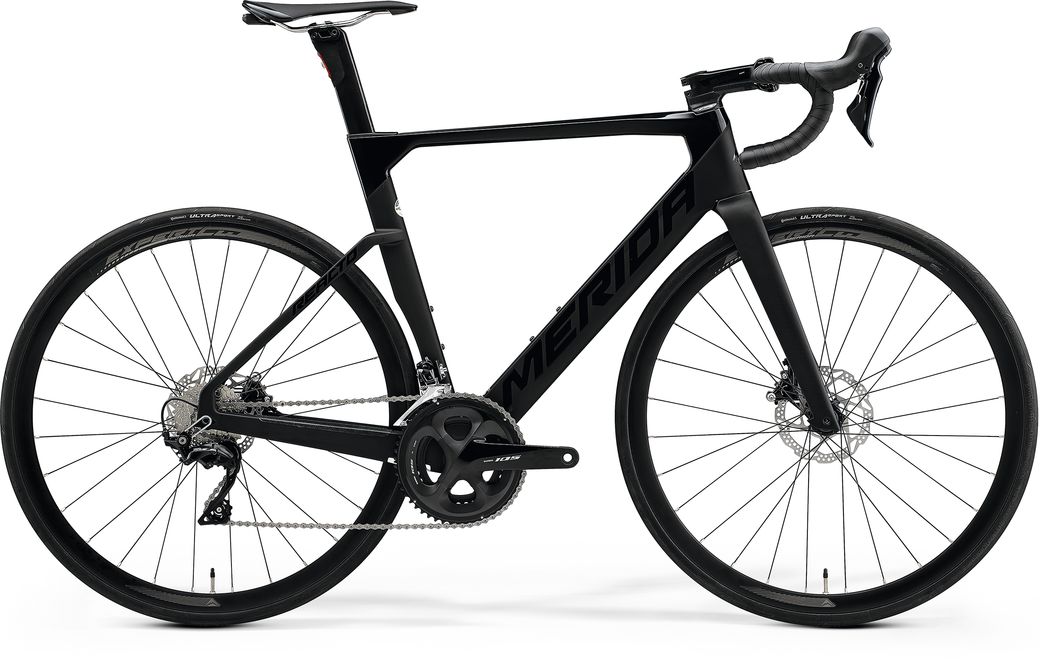

REACTO 4000

REACTO 4000



Find Dealer
  • THIS IS AN ARCHIVED MODEL

  • VIEW ALL CURRENT MODELS
  • Awards & Media

    • material: carbon
    • 700x30C max. wheelsize
    • 100x12/ 142x12mm axle standard
    • BB86,5 bottom bracket standard
    frame size XXS, XS, S, M, L, XL
    color GLOSSY BLACK/MATT BLACK
    • material: carbon
    • 700x30C max. wheelsize
    • Hydraulic disc
    brake lever Shimano 105 R7000
    headset FSA ACR
    • material: aluminium
    • 380mm (XXS)
    • 400mm (XS-S)
    • 420mm (M), 440 (L-XL)
    • material: aluminium
    • -6° stem angle

    • 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL

    grip MERIDA ROAD EXPERT
    derailleur (f) Shimano 105
    shifters Shimano 105 disc
    • Aero shape
    • 15mm setback
    • Carbon
    seat clamp MERIDA REACTO Aero
    saddle MERIDA EXPERT CC
    chain KMC X11
    • 52-36 teeth
    • 165 mm-XSS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL
    crank 165 mm-XSS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL
    • 11-30 teeth
    • 11 speed
    bottom bracket SM-BB71-41B, Pressfit 86.5
    • 100x12mm width front hub
    • 28 spoke holes, Centerlock
    • 12-142mm width rear hub
    • 28 spoke holes
    • Centerlock
    • 19mm inner width
    • 30mm height
    • material: aluminium
    • Tubeless ready (tubeless tape and valves not included)
    • including removable lever
    • 6/4mm allen key
    spokes Double Butted Black stainless
    light rear REACTO light seat post + Battery

    weighed with 700C wheels and at frame size M, without pedals

    max. weight 120 kg
    Bike Frame Geometry Image
    Frame Size XXS XS S M L XL
    Tyre Sizes 28" 28" 28" 28" 28" 28"
    ST seat tube [mm] 470 500 520 540 560 590
    TT top tube [mm] 520 536 545 560 575 590
    CS chain stay length [mm] 408 408 408 408 408 408
    HTA head tube angle [°] 70.5 72 72.5 73.5 73.5 74
    STA seat tube angle [°] 74.5 74 74 73.5 73 73
    BD bottom bracket drop [mm] 70 70 66 66 66 66
    HT head tube [mm] 105 112 128 140 155 176
    FL fork length [mm] 385 385 385 385 385 385
    R reach [mm] 377 384 390 395 400 409
    S stack [mm] 517 529 542 557 571 593
    WB wheel base [mm] 985 983 990 990 999 1010
    SH stand over height [mm] 746 771 792 810 826 853
    No. Item-No. Name Info Pieces Torque NM
    1 A2029000035 TUBE foam; ID6mm L350mm 1
    2 A2029000028 TUBE foam; ID5mm L400mm 1
    3 A2054000107 EXPANDER for fork steerer ID 23.6mm 1
    4 A2191000187 HEADSET FSA NO.55R 1.5"/ACR/STD (TH-MR127, TH-MR168) 1
    5 A2029000055 TUBE woven; L40mm for size XXS/XS 1
    5 A2029000056 TUBE woven; L60mm for size S 1
    5 A2029000057 TUBE woven; L70mm for size M 1
    5 A2029000058 TUBE woven; L90mm for size L 1
    5 A2029000059 TUBE woven; L105mm for size XL 1
    6 A2164000060 DISC COOLER front; for FM160/FM180 1
    7 A2298000265 SCREW M5x0.8 L16mm 2 6~8
    8 A2002000103 THRU AXLE EXPERT SL; L=120mm M12x1.5 TL=12mm 1
    9 A2248000035 CLAMP for saddle rail; left inner part 1
    10 A2248000031 CLAMP for saddle rail; left outer part 1
    11 A2248000034 CLAMP for saddle rail; right inner part 1
    12 A2248000030 CLAMP for saddle rail; right outer part 1
    13 A2300000259 SCREW M6x1 L45mm 2 10~12
    14a A2128000052 COVER for S-FLEX seatpost; with LED light 1
    14b A2029000081 COVER for S-FLEX seatpost, w/o light 1
    15 A2347000024 COVER for seatpost clamp 1
    16 A2247000084 CLAMP for seatpost 1 5~6
    17 A2298000059 SCREW M5x0.8 L15mm 4 3~4
    18 A2136000053 MOUNT for FD 1
    19 A2143000130 BLIND PLUG 1
    20 A2143000095 CABLE PLUG for Di2 1
    21 A2322000034 PROTECTOR for chain stay 1
    22 A2311000104 RD HANGER DH-068 for ROAD-RD 1
    23 A2311000103 RD HANGER DH-067 for SHIMANO direct mount 1
    24 A2300000129 SCREW M3x0.5 L10mm 1 2~4
    25 A2143000131 BLIND PLUG 1
    26 A2143000082 CABLE PLUG for mechanical 1
    27 A2143000121 CABLE PLUG for Di2 1
    28 A2164000061 DISC COOLER rear; for FM140/FM160 1
    29 A2002000152 THRU AXLE EXPERT SL; L=162.5mm M12x1.5 TL=12mm 1

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    HIGHLIGHTS

    To offer maximum control and braking performance, the new REACTO comes equipped with disc brakes throughout the range. We use flat mount disc brake standards in combination with our 'Disc Cooling' technology at the front and rear for the best braking performance. A flat mount rear caliper is mounted on the chainstay which is better for dissipating braking forces but also keeps it protected inside the rear triangle.

    Our high-performance carbon models with the CF5 frame feature a completely cable integrated Vision Metron 5D ACR carbon cockpit, improving aerodynamics and offering a super clean silhouette and cockpit area. The CF3 models with electronic shifting feature a two-piece aluminium cable integrated cockpit consisting of a Vision ACR SMR stem combined with a MERIDA EXPERT CW handlebar. All three cockpit options provide a very clean, organic and modern appearance.

    With aerodynamic optimisation at the fork, seat stays and a cable integrated cockpit the new REACTO offers even better values than its already class-topping predecessor.

    The 12 mm bolt through axles for greater wheel stiffness and precise disc alignment when replacing wheels. The custom axle lever is removable and has a 4 mm Allen key included, so, for example, stem and seat post clamps can be tightened and loosened.

    All models feature a full carbon fork with a tapered steerer to give precise, confidence-inspiring steering. All SCULTURA Alloy and CF2 carbon models feature a ‘regular’ 1 1/8" to 1 1/2" taper. The high-end SCULTURA CF4 frame has a slimmed down front profile and uses a 1 1/8" to 1 1/4" taper, the new REACTO frames a 1 1/2" to 1 1/4"taper.

    A forged aluminium part under the front and/or rear disc brake caliper draws heat away through CNC-milled cooling fins giving 35 % less heat build-up and faster temperature reduction for a stable braking performance.

    Comfort has always been a key feature of the REACTO. Many aero bikes suffer from a harsh ride due to the larger tube sections and seat posts. Not so on the REACTO, where our profiled seat post behaves like a conventional seat post providing a significant level of comfort amongst other aero bikes.

    Technologies

    Back to overview

    X-TAPER HEADTUBE

    Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

    Watch Video
    Back to overview

    INTERNAL CABLE ROUTING

    On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

    Watch Video
    Back to overview

    NANO MATRIX CARBON

    NANO MATRIX CARBON is a special kind of carbon fibre where we add extremely tiny, nano-scale particles to the resin that binds the individual carbon fibres together. These then work on a molecular level to protect them from damage. It’s so effective that it can actually increase the finished carbon fibre’s impact resistance by up to 40%, allowing us to build stronger and lighter composite frames that result in a faster and tougher bike.

    Watch Video
    Back to overview

    AWS ANTI WRINKLE SYSTEM

    This is a method we use to manufacture our carbon fibre frames. First, the carbon fibre that makes up the frame is laid around special formers. We then use a bladder to compress the layers against the outside of the frame mould, giving a smooth and wrinkle-free internal finish, removing any voids in between the layers of carbon that can cause potential weak points, resulting in a stronger, lighter frame.

    Watch Video
    Back to overview

    NACA FASTBACK PROFILE

    This is a special kind of tube shape that helps reduce aerodynamic drag while also helping to reduce weight. It’s based around a teardrop profile that was originally developed in the aeronautical industry, but the rearmost portion of the profile is cut short. This reduces the amount of material needed to make the tube, but air still flows around it just as well, giving all the aerodynamic benefits but at a lower weight.

    Watch Video
    Back to overview

    DISC COOLER

    Used on our carbon fibre road and gravel bikes, DISC COOLER is a finned piece of forged aluminium that sits between the brake calliper and frame. The aluminium piece helps to draw heat from the braking system and radiates it away quickly. It reduces the temperatures by up to 35% and helps to keep your brakes working at their best for improved control and performance on long descents and under heavy braking.

    Watch Video
    Back to overview

    INTERNAL CLAMP

    When every second counts, the smallest of details can make the difference between winning and losing, so we look at every aspect of our frames to make them as sleek as possible. By using a seat post clamping mechanism that secures the post with a wedge inside the frame itself, we minimise the turbulence and potential drag while keeping post height adjustment simple, giving a frame that is more aerodynamic and also better looking.

    Watch Video
    Back to overview

    WIRE PORT

    MERIDA designed headsets that enable all control cables from the handlebar to enter the frame through the headset cover, creating a clean and uncluttered look, allowing for a lighter, stronger and more aerodynamic frame structure than with conventional cable ports. Depending on the model, the cables are run completely internally (including the bar and stem) or semi-integrated, where the cables enter the frame underneath the stem.

    Watch Video
