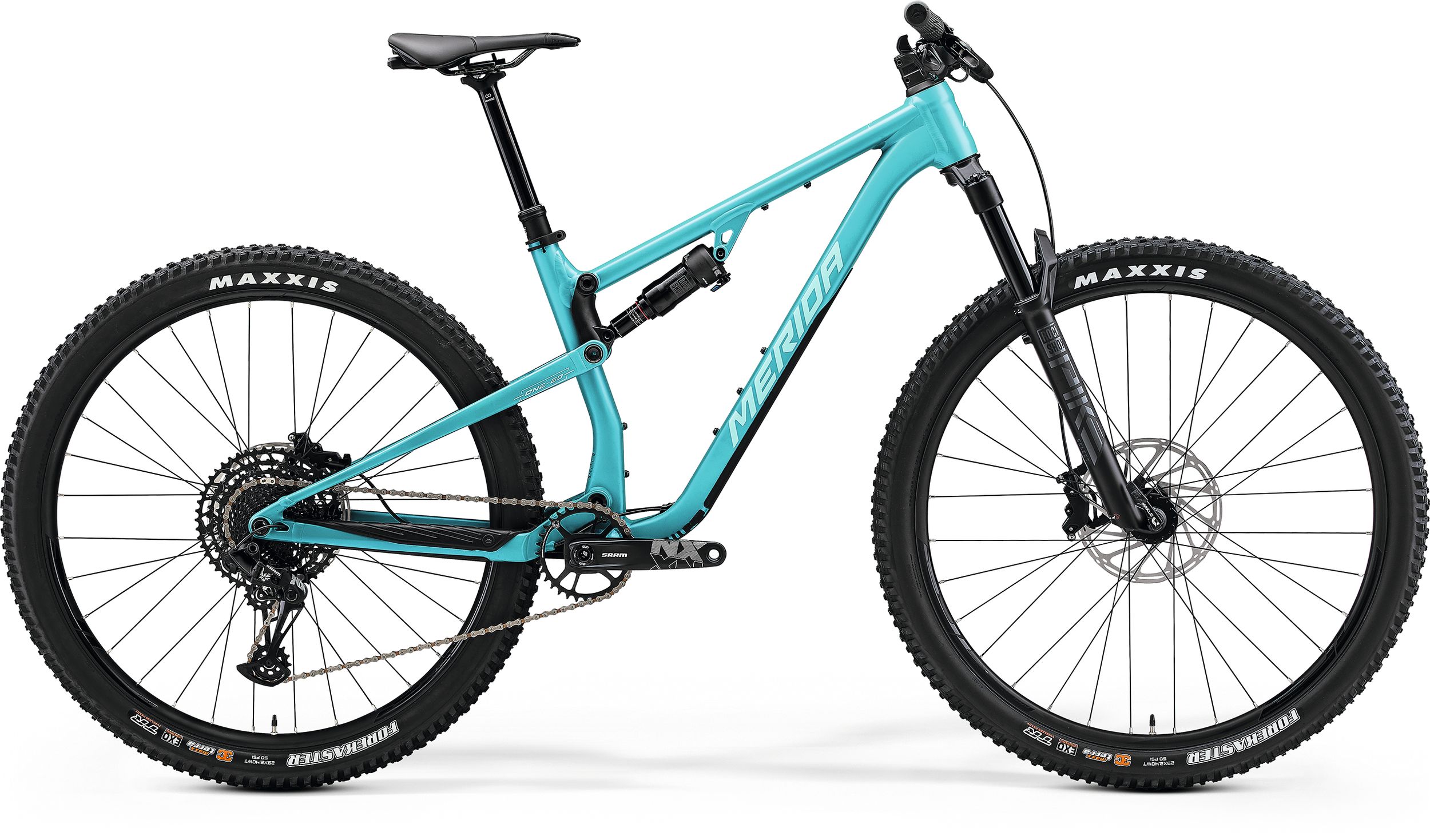

Capable on tough terrain, but fun everywhere. The latest ONE-TWENTY 700 is the do-everything trail bike that's ready to get on and have fun, no matter where or what you're riding. With 130 mm of travel at either end controlled by quality RockShox suspension, it's ready to rip the descents without being a drag on the climbs, while our aluminium frame uses P-FLEX technology for low maintenance but maximum performance. Powerful SRAM 4-piston brakes are paired with a wide-range 12-speed drivetrain for complete confidence.
The ONE-TWENTY is a bike that doesn't need to be shoehorned into a category. Short travel trail, downcountry - call it whatever you want, but this is a fun mountain bike for doing fun mountain bike things. Light enough to climb all day but planted on the descents - and the perfect balance everywhere else. Whether you're into flowing singletrack sessions or big mileage in the mountains, the ONE-TWENTY is our do-it-all Swiss Army Knife of a bike. Our high-value, high-quality LITE aluminium frame is paired with our proven P-FLEX flexstay suspension design, keeping maintenance needs low, but performance high. We've also used our progressive geometry concept but tweaked it to suit a fun, short-travel machine and, thanks to the AGILOMETER sizing concept from our award-winning ONE-SIXTY and ONE-FORTY range, you can pick stable or agile handling independently of bike fit. The hardest part will be getting the smile off your face.
- Trail-ready LITE aluminium frame with P-FLEX technology
- Progressive geometry and AGILOMETER sizing
- 130 mm travel front and rear with RockShox Pike fork and Deluxe shock
- SRAM 12-speed wide range drivetrain
- Powerful 4-piston hydraulic SRAM disc brakes for excellent control
- MERIDA dropper seat post
- 130 mm suspension travel
- material: aluminium
- 29x2.5" max. wheelsize
- 148x12 mm axle standard
- BSA bottom bracket standard
- Air
- 130 mm suspension travel
- Tapered
- 44 mm fork offset
- platform
- 29x2.X" max. wheelsize
- 4 piston
- 4 piston
- 32 teeth
- 170 mm on all sizes
- 10-50 teeth
- 12 speed
- Upper and lower IPS sealing
- V-mount adapter
- incl. MERIDA minitool
- Diameter: 34.9 mm
- Setback: 0 mm
- Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG
- 29 mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 29x2.4"
- fold
- TR EXO 3C MaxxTerra
- 29x2.4"
- fold
- TR EXO 3C MaxxTerra
- 110x15 mm width front hub
- 32 spoke holes
- 6 bolt
- 148x12 mm width rear hub
- 32 spoke holes
- 6 bolt
weighed at frame size M
| Frame Size | XShort | Short | Mid | Long | XLong |
| Tire Sizes | 29" | 29" | 29" | 29" | 29" |
| St Seat Tubes Mm | 400 | 410 | 425 | 445 | 470 |
| Tt Top Tubes Mm | 548 | 569 | 590 | 611 | 632 |
| Cs Chain Stays Mm | 435 | 435 | 435 | 435 | 435 |
| Hta Head Tube Angles Deg | 66 | 66 | 66 | 66 | 66 |
| Sta Seat Tube Angle Deg | 78.5 | 78.5 | 78.5 | 78.5 | 78.5 |
| Bd Bottom Bracket Drops Mm | 40 | 40 | 40 | 40 | 40 |
| Ht Head Tube Lengths Mm | 95 | 100 | 105 | 110 | 115 |
| Fl Fork Lengths Mm | 541 | 541 | 541 | 541 | 541 |
| R Reachs Mm | 425 | 445 | 465 | 485 | 505 |
| S Stacks Mm | 604 | 609 | 613 | 618 | 622 |
| Wb Wheel Base Mm | 1155 | 1177 | 1199 | 1221 | 1243 |
| Sh Stand Over Height Mm | 748 | 750 | 752 | 754 | 756 |
