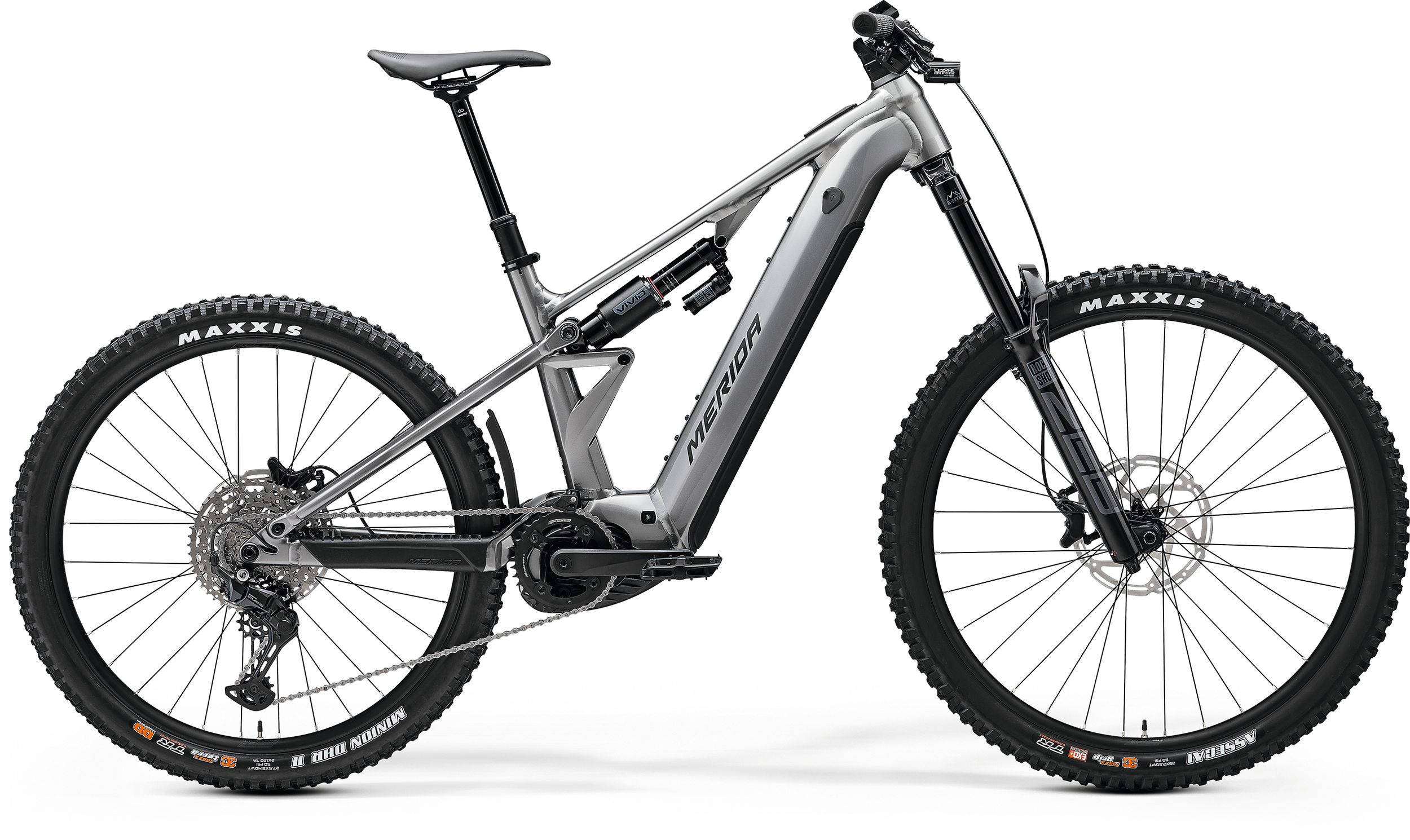

Le eONE-EIGHTY 500 est conçu pour affronter les sentiers les plus accidentés, où que vous les trouviez. Avec 180 mm de débattement à chaque extrémité du cadre en aluminium robuste et une fourche RockShox Zeb Base ainsi qu’un amortisseur Vivid Base, ce vélo est prêt à dévorer les champs de pierres au petit-déjeuner, les sauts au déjeuner et tout ce que vous avez envie d’attaquer pour le dîner. L’unité motrice Bosch CX et la grande batterie de 800 Wh vous permettent de répéter cela aussi souvent que vous le souhaitez, tandis que notre configuration de roues mixtes signifie que ce bolide est aussi agile qu’il est puissant.
Awards & Media
- material: aluminium
- 180mm suspension travel
- 27.5" x 2.6" max. wheelsize
- 148x12mm axle standard
Tailles Short, Mid, Long
Couleur GUNMETAL GREY (BLACK)
- Air
- 180mm suspension travel
- Tapered
- 44mm fork offset
- 29x2.6" max wheelsize
Amortisseur arr. Rock Shox Vivid Base
Commande vitesse arr. Shimano Cues U6000-10
Commande vitesse av. Shimano SL: MT500-L
- 4 piston
- 4 piston
- 165mm for all sizes
Chaine Shimano LG500
- 11-48 teeth
- 10 speed
Poignée MERIDA EXPERT EC
Direction Acros ICR MERIDA EXTERNAL neck w/ Blocklock
- 28% recycled material
- V-mount
- 34.9mm diameter
- 0mm setback
- XS: 125mm travel seatpost : S: 150mm travel seatpost : M/L: 200mm travel seatpost : XL: 230mm travel seatpost
- 110x15mm width front hub
- 148x12mm width rear hub
- 28mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- front 29"
- rear 27.5"
Rayons Black stainless
- 29x2.5 "
- fold
- TR EXO+ 3C MaxxGrip
- 27.5x2.4 "
- fold
- 3C DD TR MaxxTerra
- 15x100mm width front hub
- 32 spoke holes
- Centerlock
- 12x148mm width rear hub
- 32 spoke holes
- Centerlock
Pedale VP VPE-533
- reverse MERIDA Custom Mount
Lumière arrière USB REAR Light CG-214RG
Moteur Bosch Performance Line CX
- removeable
Display Bosch Purion 200
Hardware stainless
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
| Frame Size | Short | Mid | Long |
| Tire Sizes | 29/27.5" | 29/27.5" | 29/27.5" |
| St Seat Tubes Mm | 410 | 425 | 445 |
| Tt Top Tubes Mm | 577 | 604 | 630 |
| Cs Chain Stays Mm | 435 | 435 | 435 |
| Hta Head Tube Angles Deg | 64.5 | 64.5 | 64.5 |
| Sta Seat Tube Angle Deg | 78.5 | 78.5 | 78.5 |
| Bd Bottom Bracket Drops Mm | 12 | 12 | 12 |
| Ht Head Tube Lengths Mm | 115 | 120 | 125 |
| Fl Fork Lengths Mm | 600 | 600 | 600 |
| R Reachs Mm | 435 | 460 | 485 |
| S Stacks Mm | 657 | 661 | 666 |
| Wb Wheel Base Mm | 1218 | 1245 | 1272 |
| Str Stack To Reach Ratio Pc | 1.51 | 1.44 | 1.37 |
| Number | Item Number | Name | Info | Pieces | Torque NM |
| 1 | A2300000696 | BOLT | M6x1 OD15/17mm L74mm | 1 | |
| 2 | A2221000040 | BEARING | 172607V-2RS OD26mm ID17mm W7mm | 1 | |
| 3 | A2294000102 | WASHER | OD21mm ID17.1mm H3mm | 1 | |
| 4 | A2294000016 | WASHER | OD19mm ID15.1mm H3mm | 3 | |
| 5 | A2221000043 | BEARING | 3802V-2RS OD24mm ID15mm W7mm | 3 | |
| 6 | A2300000609 | SCREW | M10x1 L15mm | 1 | 15~17 |
| 7 | A2300000736 | BOLT | M6x1 OD10mm L39mm | 1 | |
| 8 | A2298000113 | SCREW | M6x1 L16mm | 2 | 8~10 |
| 9 | A2294000196 | WASHER | for M6 sunkenhead screw OD16mm | 4 | |
| 10 | A2300000693 | BOLT | M6x1 OD12mm L62mm | 1 | |
| 11 | A2300000737 | SCREW | M8x1 L49mm | 1 | 18~20 |
| 12 | A2294000224 | LOCK RING | for ID21 | 1 | |
| 13 | A2294000223 | WASHER | OD12.1mm ID15.5mm H3mm | 2 | |
| 14 | A2221000035 | BEARING | 6801V-2RS OD21mm ID12mm W5mm | 2 | |
| 15 | A2031000094 | LINK | 1 | ||
| 16 | A2262000059 | WASHER | OD15.5mm ID12.1mm H31mm | 1 | |
| 17 | A2300000743 | SCREW | M15x1 L20.5mm | 2 | 23~25 |
| 18 | A2294000225 | LOCK RING | for ID24 | 2 | |
| 19 | A2300000652 | BOLT | M6x1 OD10mm L18.8mm | 2 | |
| 20 | A2294000212 | WASHER | OD14mm ID10.1mm H3.1mm | 4 | |
| 21 | A2294000211 | LOCK RING | for ID22 | 2 | |
| 22 | A2221000060 | BEARING | 6900V-2RS OD22mm ID10mm W6mm | 2 | |
| 23 | A2292000141 | WASHER | OD13mm ID9mm H1mm | 1 |
