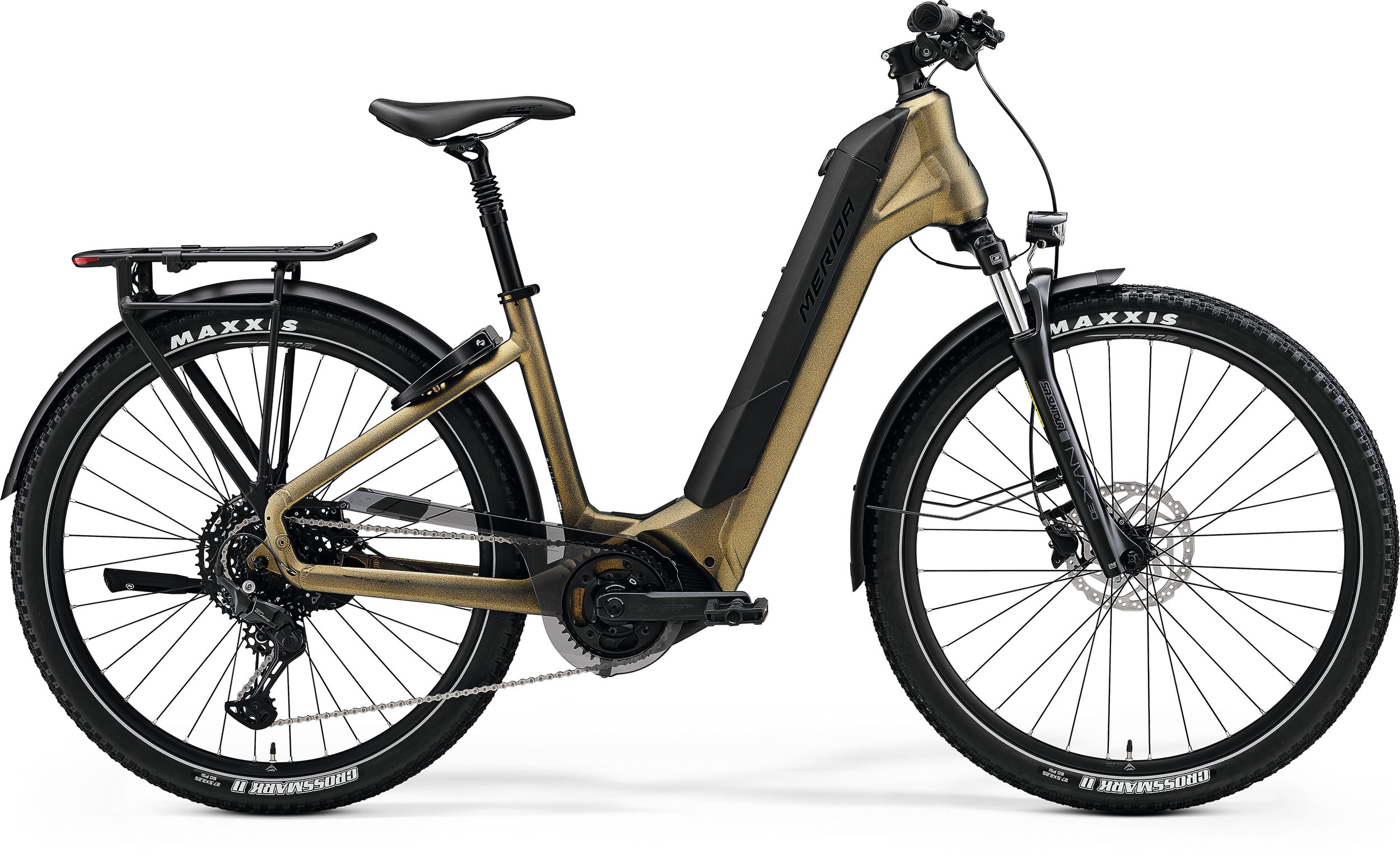

Rugged enough for the countryside, tough enough for the city. The eSPRESSO CC 575 EQ pairs the new, powerful Shimano EP6 drive unit with a high-capacity 750 Wh battery that sits in our ENERGY CRADLE frame design. It combines the convenience of an external battery with the looks of an internal battery in order to keep the handling safe and secure. We've also fitted tough 650b wheels with comfortable and grippy high-volume tyres that help take the sting out the bumps, along with a suspension fork and seatpost.
The eSPRESSO CC range is the rugged sibling of the regular eSPRESSO CITY, with wider and grippier high-volume tyres on 650b wheels. While it's happy working hard in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun. Models with the low step-through ENERGY CRADLE frame design come with either 630 Wh or 750 Wh fully-integrated batteries, while a more economical semi-integrated frame comes with a 504 Wh battery. All come with a refined but powerful Shimano STEPS pedal-assist motor, including the sporty EP801 unit on some models. Smooth and comfortable progress is assured with suspension forks on all models, while powerful hydraulic disc brakes allow effortless and controlled stopping. All have a high system weight of 150 kg which means plenty of capacity for rider and luggage.
- New, powerful Shimano EP6 drive unit
- Super low step-through ENERGY CRADLE frame design with internally mounted, high-capacity 750 Wh battery
- Slick Shimano 10-speed drivetrain
- Suspension fork and seat post for comfort and control
- Agile 650b wheels with grippy high-volume tyres
- Fully equipped with guards, lights, lock, rack and kickstand
- material: aluminium
- 27,5x2,25" max. wheelsize
- 135x9 mm axle standard
- internal
- Coil
- 80 mm suspension travel
- 27,5x2,4" max. wheelsize
- 2 piston
- 2 piston
- 165 mm
- 38 teeth
- 11-48 teeth
- 10 speed
- V-mount
- 30.9 mm diameter
- 15 mm setback
- 40 mm seatpost suspension travel
- 20 mm inner width
- material: aluminium
- 27.5x2.25"
- wire
- reflecting line
- 27.5x2.25"
- wire
- reflecting line
- 100x9 mm width front hub
- 32 spoke holes
- Centerlock
- 135x9 mm width rear hub
- 32 spoke holes
- Centerlock
- 85Nm
weighed at frame size M
| Frame Size | XS | S | M | L |
| Tire Sizes | 27.5" | 27.5" | 27.5" | 27.5" |
| St Seat Tubes Mm | 380 | 430 | 480 | 530 |
| Tt Top Tubes Mm | 580 | 595 | 615 | 635 |
| Cs Chain Stays Mm | 470 | 470 | 470 | 470 |
| Hta Head Tube Angles Deg | 70 | 70 | 70 | 70 |
| Sta Seat Tube Angle Deg | 73.5 | 73.5 | 73.5 | 73.5 |
| Bd Bottom Bracket Drops Mm | 65 | 65 | 65 | 65 |
| Ht Head Tube Lengths Mm | 170 | 175 | 180 | 190 |
| Fl Fork Lengths Mm | 476 | 476 | 476 | 476 |
| R Reachs Mm | 385 | 399 | 417 | 435 |
| S Stacks Mm | 656 | 661 | 666 | 675 |
| Wb Wheel Base Mm | 1113 | 1129 | 1149 | 1170 |
| Sh Stand Over Height Mm | 403 | 403 | 402 | 402 |
