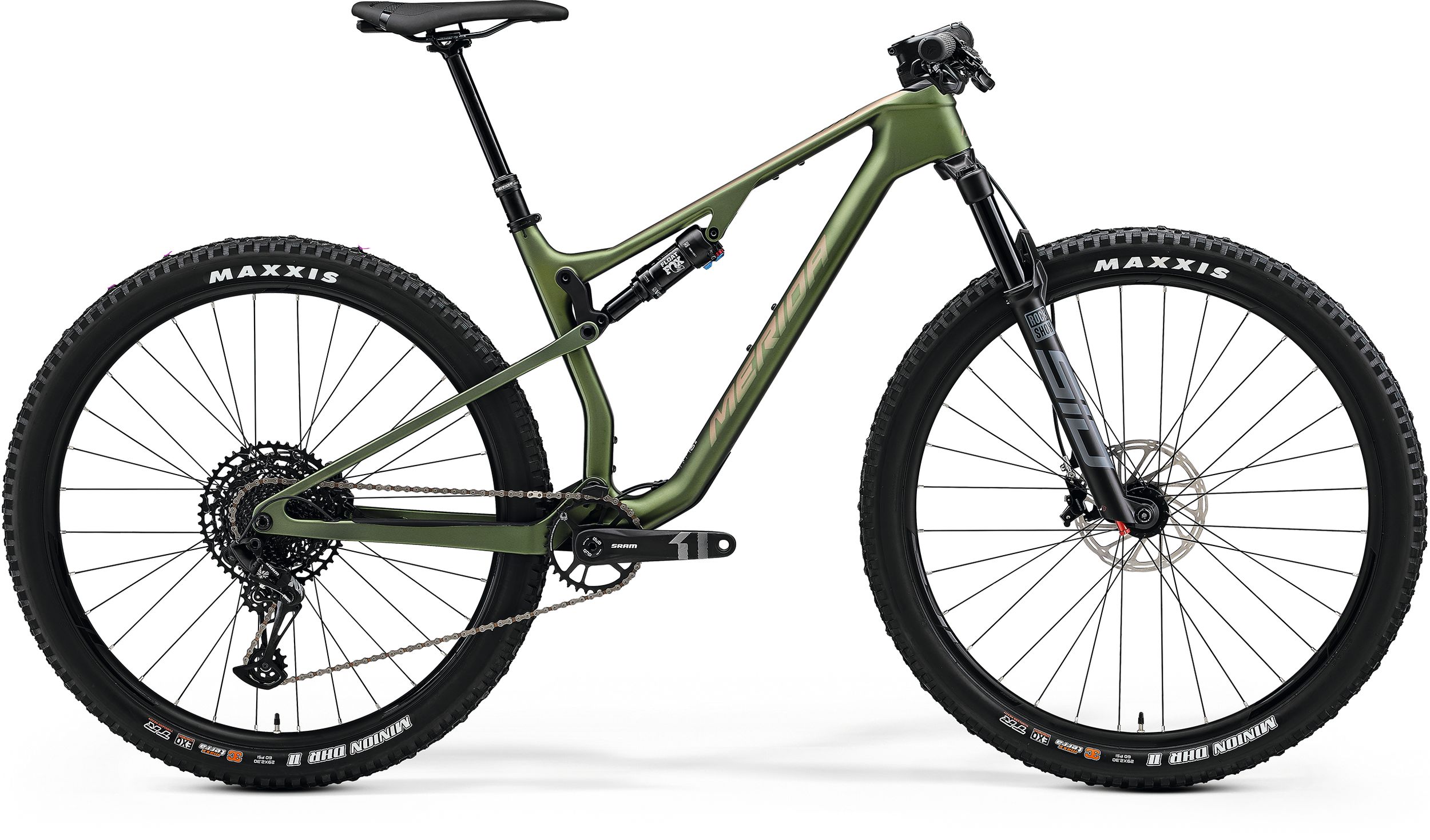

You want to hit the trails at full gas, whether they're up or down - and you want to do it all day. The NINETY-SIX 6000 is our trail-focussed version of our cutting edge cross-country race weapon, pairing a longer travel 120 mm RockShox SID fork to our taut but effective 100 mm of rear travel. A SRAM NX 12-speed group translates effort into speed, while a larger four-piston front brake and more aggressive tyres will back you up when you hit territory that should be out of bounds for a bike that climbs so well.
The NINETY-SIX is the latest incarnation of our former World Cup proven XC and marathon machine. It inherits the forward-surging race genes of the old NINETY-SIX and combines it with a new readiness and ability to tackle today’s demanding XC and marathon courses. The carbon fibre frame platform and P-FLEX suspension is the perfect basis for a fun-packed, fast and trail loving short travel full suspension machine that helps define what a modern cross-country race bike should be. It's able to take on the rougher than ever world-class race tracks as well as the trail riders who want hyper-speed climbing with the ability to descend like never before. For those that want a cross-country bike for race duties rather than high-speed trail fun, the RC models deliver a short travel punch with a 100 mm fork in the front, super fast rolling tyres and a lighter front brake.
- Lightweight CF4 carbon frame with 100 mm travel and P-FLEX technology
- 120 mm travel RockShox SID fork for increased capability
- Modern aggressive geometry
- Powerful SRAM Level 4-piston front brake
- Aggressive Maxxis tyres
- MERIDA dropper seat post
- 100 mm suspension travel
- material: carbon
- 29x2.35" max. wheelsize
- 148x12 mm axle standard
- BSA bottom bracket standard
- Air
- 120 mm suspension travel
- Tapered
- 3-Pos lockout
- 44 mm fork offset
- 29x2.6" max. wheelsize
- adjustable low speed compression
- platform
- 32 teeth
- 170 mm-S, 175 mm-M up
- 10-50 teeth
- 12 speed
- Upper and lower IPS sealing
- V-mount
- incl. MERIDA minitool
- 30.9 mm diameter
- 0 mm setback
- S: 125 mm travel seatpost - M/L: 150 mm travel seatpost - XL 175 mm travel seatpost
- 29 mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 29x2.3"
- fold
- TR EXO 3C MaxxTerra
- 29x2.3"
- fold
- TR EXO 3C MaxxTerra
- 110x15 mm width front hub
- 32 spoke holes
- 6 bolt
- 148x12 mm width rear hub
- 32 spoke holes
- 6 bolt
weighed at frame size M
| Frame Size | S | M | L | XL |
| Tire Sizes | 29" | 29" | 29" | 29" |
| St Seat Tubes Mm | 400 | 440 | 470 | 500 |
| Tt Top Tubes Mm | 581 | 601 | 624 | 648 |
| Cs Chain Stays Mm | 435 | 435 | 435 | 435 |
| Hta Head Tube Angles Deg | 67 | 67 | 67 | 67 |
| Sta Seat Tube Angle Deg | 75 | 75 | 75 | 74.5 |
| Bd Bottom Bracket Drops Mm | 36 | 36 | 36 | 36 |
| Ht Head Tube Lengths Mm | 95 | 95 | 105 | 115 |
| Fl Fork Lengths Mm | 530 | 530 | 530 | 530 |
| R Reachs Mm | 420 | 440 | 460 | 480 |
| S Stacks Mm | 595 | 595 | 605 | 614 |
| Wb Wheel Base Mm | 1136 | 1156 | 1180 | 1203 |
| Sh Stand Over Height Mm | 740 | 741 | 747 | 749 |
