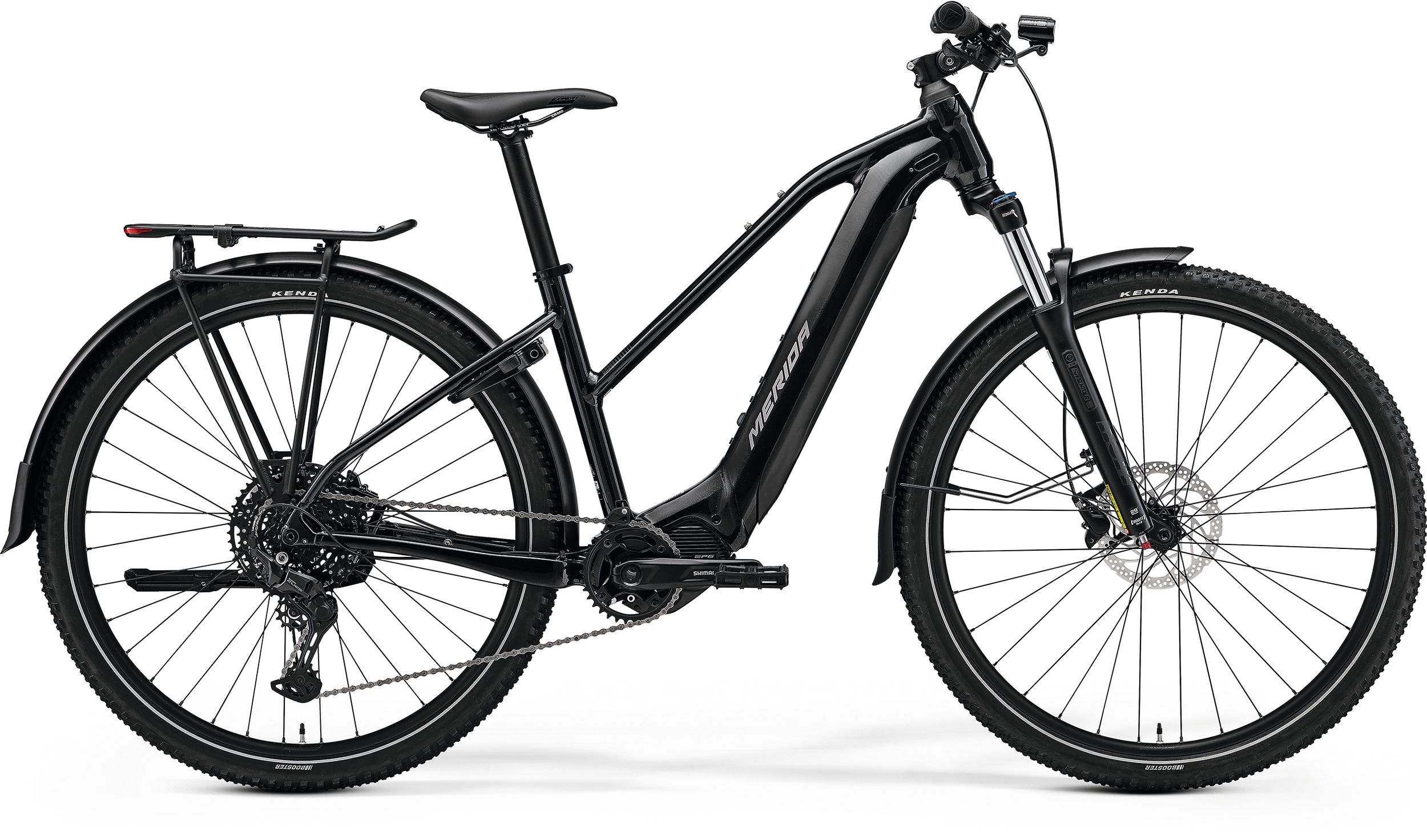

Joining together urban practicality with the willingness to explore is no easy feat, but the eBIG.TOUR 400 EQ does just that, with the new Shimano EP6 drive unit giving you smooth yet powerful assistance whenever you need it. Large volume tyres, a suspension fork and mountain bike inspired geometry deliver capable and confident handling whenever you want an adventure, but the low-step-through frame design with integrated 630 Wh battery and generous standard fit equipment including mudguards and lighting have your everyday needs covered, so there's no need to compromise.
Are practicality and excitement mutually exclusive? We don't think so - and neither does the eBIG.TOUR. It's a reliable day-to-day companion for riding to work that's equally happy taking you on big adventures off the beaten track, thanks to a winning combination of mountain bike inspired geometry with low step-through frame practicality. A powerful and smooth Shimano pedal-assist motor is integrated cleanly into the aluminium frame, while a suspension fork and high-volume tyres provide comfort and safety. Add in standard fit mudguards, racks, lighting, wheel lock and a kickstand plus long-lasting 630 or 750 Wh batteries and you'll realise you've got the best of all worlds.
- Lightweight aluminium frame with integrated 630 Wh battery and low step-through frame design
- Latest powerful Shimano EP6 drive unit with 85 Nm torque
- SR Suntour suspension fork for improved comfort and control
- Standard fit mudguards, rack, lights, wheel lock and kickstand
- 29er wheels with high volume tyres can handle city or countryside terrain
- Smooth Shimano drivetrain and powerful disc brakes
- material: aluminium
- 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize
- 148x12mm axle standard
- intube
- 100mm
- Tapered
- 51mm fork offset
- 29x2.4" max wheelsize
- 2 piston
- material: aluminium
- 34.9mm diameter
- 0mm setback
- V-mount
- 34 teeth
- 11-48 teeth
- 10 speed
- 25mm inner width
- material: aluminium
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 148x12mm width rear hub
- 36 spoke holes
- Centerlock
- including removeable lever, 6/4mm allen key
- black nipples
- 29x2.2"
- wire
- Reflex stripe
- 85Nm
- 630Wh
| Misura telaio | S | M | L | XL |
| Misura pneumatici | 29" | 29" | 29" | 29" |
| St reggisella mm. | 380 | 430 | 480 | 530 |
| Tt top tube mm. | 588 | 605 | 625 | 645 |
| CS Carro posteriore Mm | 465 | 465 | 465 | 465 |
| Hta Gradi angolo sterzo | 67.5 | 67.5 | 67.5 | 67.5 |
| Sta Gradi angolo tubo piantone | 74.5 | 74.5 | 74.5 | 74.5 |
| Bd Movimento centrale mm. | 62.5 | 62.5 | 62.5 | 62.5 |
| Ht Altezza tubo sterzo mm. | 115 | 120 | 130 | 140 |
| FI Lunghezza forcella mm. | 527 | 527 | 527 | 527 |
| R Reachs Mm | 411 | 427 | 445 | 462 |
| S Stacks Mm | 636 | 640 | 650 | 659 |
| Wb interasse mm | 1165 | 1183 | 1204 | 1225 |
| Sh Stand Over Height Mm | 630 | 653 | 665 | 677 |
| Numero | Codice articolo | Nome | Info | Pezzi | Coppia NM |
| 1 | A2300000048 | SCREW | M4x0.7 L8mm | 1 | 3~5 |
| 2 | A2311000067 | RD-HANGER | DH-057 | 1 | |
| 3 | A2300000185 | SCREW | M3x0.5 L20.5mm | 2 | 2~4 |
| 4 | A2258000012 | CABLE GUIDE | for M5 fixation | 1 | |
| 5 | A2298000004 | SCREW | M5x0.8 L15mm with washer | 1 | 3~5 |
| 6 | A2300000468 | SCREW | M8x1.25 L18.5mm | 3 | 11~12 |
| 7 | A2300000469 | SCREW | M8x1.25 L23mm | 3 | 11~12 |
| 8 | A2298000120 | SCREW | M5x0.8 L12mm | 7 | 3~5 |
| 9 | A2143000097 | BLIND PLUG | for SIMPLO batteries | 2 | |
| 10 | A2161000118 | COVER | for battery | 1 | |
| 11 | A2161000127 | CABLE GUIDE | 1 | ||
| 12 | A2111000008 | CABLE GUIDE | 2 | ||
| 13 | A2143000129 | BLIND PLUG | for key opening | 1 | |
| 14 | A2300000213 | SCREW | M3x0.5 L13.5mm | 2 | 2~4 |
| 15 | CABLE GUIDE | SMART ENTRY | 1 | ||
| 16 | A2258000079 | CABLE PLUG | for RD | 1 | |
| 17 | A2258000099 | CABLE PLUG | for rear brake and speed sensor | 1 | |
| 18 | A2161000079 | COVER | for top tube opening | 1 | |
| 19 | A2300000231 | SCREW | M3x0.5 L8 | 1 | 2~4 |
| 20 | A2029000024 | BUMPER | for INTERNAL BLOCK | 1 | |
| 21 | A2002000136 | THRU AXLE | EXPERT TR; L=178mm M12x1.5 TL=14mm w. NUT | 1 | |
| 22 | A2248000039 | CLAMP | for INTERNAL BLOCK | 1 | |
| 23 | A2191000150 | HEAD SET | MERIDA/VP-8155 (MH-P16/MH-P16) | 1 |
