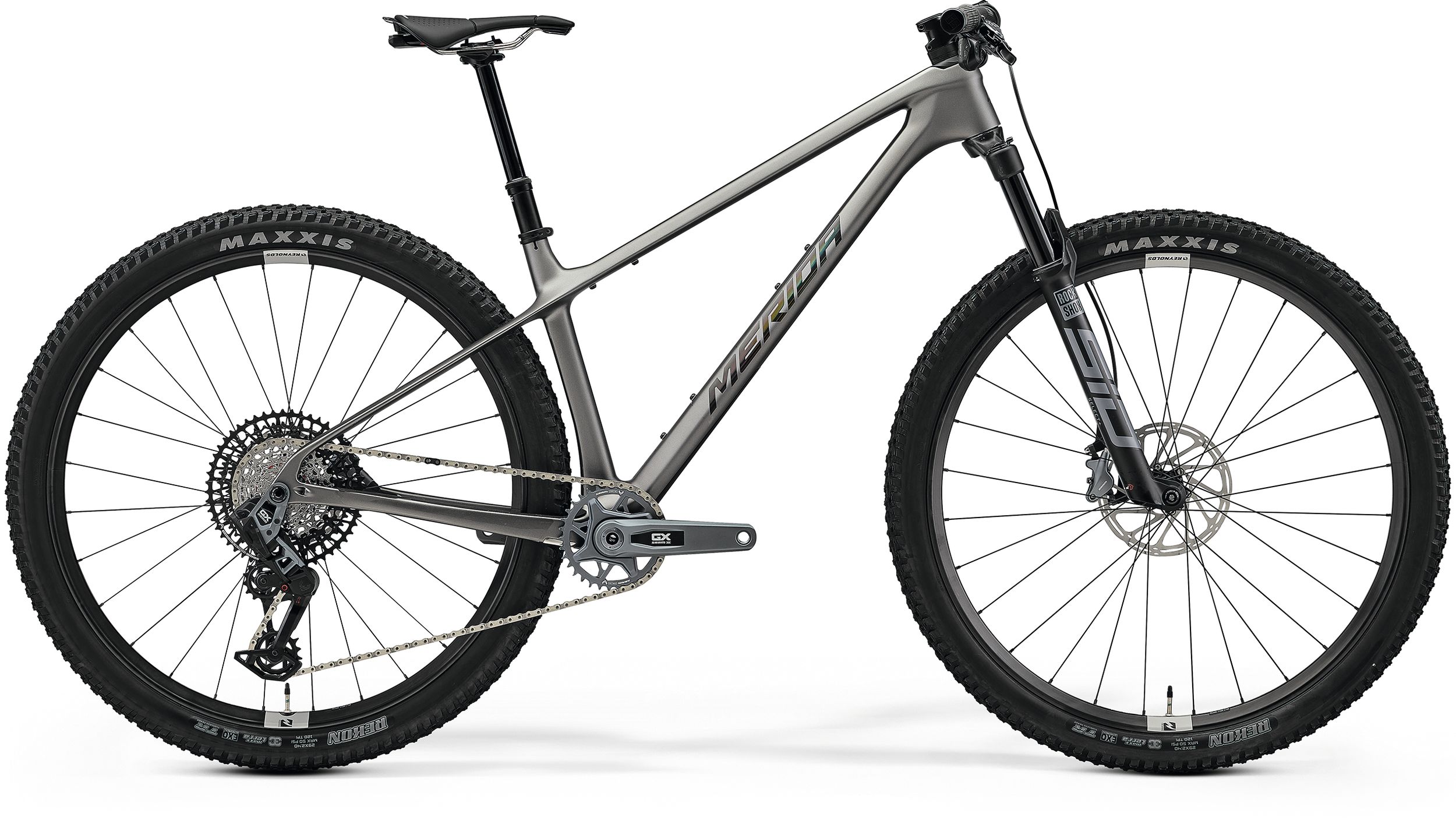

BIG.NINE TR 8000



Cross-country, downcountry - this bike is ready for it all. We've kept the speed of our latest carbon frame but boosted the travel to 120 mm, added trail-ready rubber and a dropper post for sublime control.
Trova un rivenditore

Cross-country speed, trail bike performance. The latest BIG.NINE TR 8000 boosts the descending capability of our latest progressive geometry carbon fibre frame by adding a longer travel 120 mm fork, more aggressive tyres and a dropper seatpost for improved control. A long travel dropper post and RockShox SID fork deliver control and precision while the wireless SRAM GX T-Type drivetrain and lightweight Reynold carbon wheelset offer blisteringly fast pace, uphill or down. Cross-country, downcountry - this bike is ready for it all.

When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver size for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.

  • Lightweight CF3 carbon fibre frame with 2.4" tyre clearance
  • Progressive geometry with AGILOMETER sizing for confident handling
  • Fox 34 SC fork with 120 mm travel for improved descending ability
  • Wireless SRAM GX T-type 12-speed drivetrain
  • Lightweight carbon Reynolds wheelset and trail-ready tyres
  • Lightweight long travel MERIDA TEAM TR SL dropper seatpost with remote lever
remote lever Rock Shox Twistloc
  • material: carbon
  • 29x2.4" max wheelsize
  • 148x12mm axle standard
  • BSA bottom bracket standard
COLORE SILK GUNMETAL GREY (HOLO BLACK)
MISURA TELAIO S, M, L, XL, XXL
  • Air
  • 120mm suspension travel
  • 2 position remote lockout
  • 29x2.4" max. wheelsize
  • 44mm fork offset
  • material: carbon
  • 760mm width
  • 12.5mm rise
  • material: aluminium
  • 31.8mm diameter
  • -6° stem angle
  • incl. MERIDA SMART MOUNT
  • 60mm
MANOPOLE MERIDA TEAM CC
COMANDI Sram dropper lever MMX / Sram AXS POD Controller
  • 34 teeth
  • 170 mm for all sizes
  • 30.9mm diameter
  • 0mm setback
  • S/M: 150mm travel seatpost - L/XL/XXL: 170mm travel seatpost
MORS. REGGISELLA MERIDA EXPERT
  • V-mount adapter
  • incl. MERIDA minitool
SERIE MOVIMENTO Sram DUB BSA 73 MTB Wide
  • including removeable lever, 6/4mm allen key
  • 110x15mm width front hub
  • 148x12mm width rear hub
  • 30mm inner width
  • Centerlock
  • Sram 12 Speed
  • material: carbon
  • Tubeless ready (tubeless tape and valves included)
  • Lifetime warranty
  • 29x2.4" WT
  • tubeless ready
  • 3C EXO
Immagine geometrie telaio
Misura telaio S M L XL XXL
Misura pneumatici 29" 29" 29" 29" 29"
St reggisella mm. 380 410 440 470 500
Tt top tube mm. 594 614 637 659 681
CS Carro posteriore Mm 430 433 436 439 442
Hta Gradi angolo sterzo 66.9 66.9 66.9 66.9 66.9
Sta Gradi angolo tubo piantone 74.2 74.2 74.2 74.2 74.2
Bd Movimento centrale mm. 57 57 57 57 57
Ht Altezza tubo sterzo mm. 95 95 105 115 125
FI Lunghezza forcella mm. 530 530 530 530 530
R Reachs Mm 420 440 460 480 500
S Stacks Mm 614 614 624 633 643
Wb interasse mm 1132 1155 1182 1209 1235
Sh Stand Over Height Mm 711 711 717 738 759

Per ridurre i tempi di produzione e consegna, a volte siamo costretti ad apportare modifiche alle specifiche dell'ultimo minuto. Tieni presente che tali modifiche potrebbero non riflettersi su queste pagine e immagini dei prodotti.

Tecnologie

Torna alla panoramica

FLEX-STAY

Il profilo dei pendenti e del fodero orizzontale e il programma di lay-up del carbonio sono adattati per funzionare come una molla a balestra piatta, assorbendo gli urti della superficie e riducendo le vibrazioni.

Guarda il video
Torna alla panoramica

X-TAPER HEADTUBE

Il nostro tubo sterzo X-Tapered offre lo spazio per il montaggio di una forcella conica. Le forcelle coniche offrono rigidità e precisione eccezionali e offrono uno sterzo che ispira fiducia.

Guarda il video
Torna alla panoramica

INTERNAL CABLE ROUTING

I cavi vengono instradati attraverso il telaio, entrando e uscendo attraverso prese lisce. La bici ha un aspetto pulito, mentre i cavi sono protetti da umidità e sporco.

Guarda il video
Torna alla panoramica

DI2 READY

Le biciclette/telai con il simbolo "Di2 Ready" sono predisposte per l'installazione della tecnologia Di2 con il montaggio della batteria nel reggisella o all'interno della forcella.

Guarda il video
Torna alla panoramica

NANO MATRIX CARBON

Per proteggere l'integrità dei telai in carbonio, le fibre sono legate insieme a una resina epossidica con l'aggiunta di nanoparticelle, aumentando la resistenza agli urti fino al 40%.

Guarda il video
Torna alla panoramica

AWS

Quando si creano i singoli elementi in carbonio, viene utilizzata una camera d'aria gonfiabile per garantire che non vi siano grinze all'interno del tubo poiché possono aggiungere peso e creare debolezza. Ciò si traduce in un telaio più leggero, più rigido e più resistente.

Guarda il video
Torna alla panoramica

WIRE PORT

MERIDA ha progettato cover che consentono a tutti i cavi di controllo di entrare nel telaio attraverso la serie sterzo, creando un aspetto pulito e ordinato, senza apportare modifiche strutturali al telaio. A seconda del modello, i cavi passano completamente all'interno del manubrio (compreso l'attacco manubrio) o semi-integrati dove i cavi entrano nel telaio sotto l'attacco manubrio.
